Rippin Moto Caliper Shim Kit

This hardware shimming kit is designed to fine-tune the install of your front or rear brake caliper when installing the 250mm Race Spec rotor and caliper adapter.

Please note that

most

OEM Surron/Talaria/ERP applications will not need this shim kit however, some late model fork and aftermarket caliper combinations will need some fine-tuning with the post-mount system and shims to get proper alignment and clearance from the rotor.

Some people get upset when they realize they need shims, but this is the reality of the standard post-mount system in the MTB world as not all OEM calipers and aftermarket calipers and integrated post-mounts on forks are dimensioned exactly the same. There can be up to 3mm of difference between some model calipers and fork post mounts.

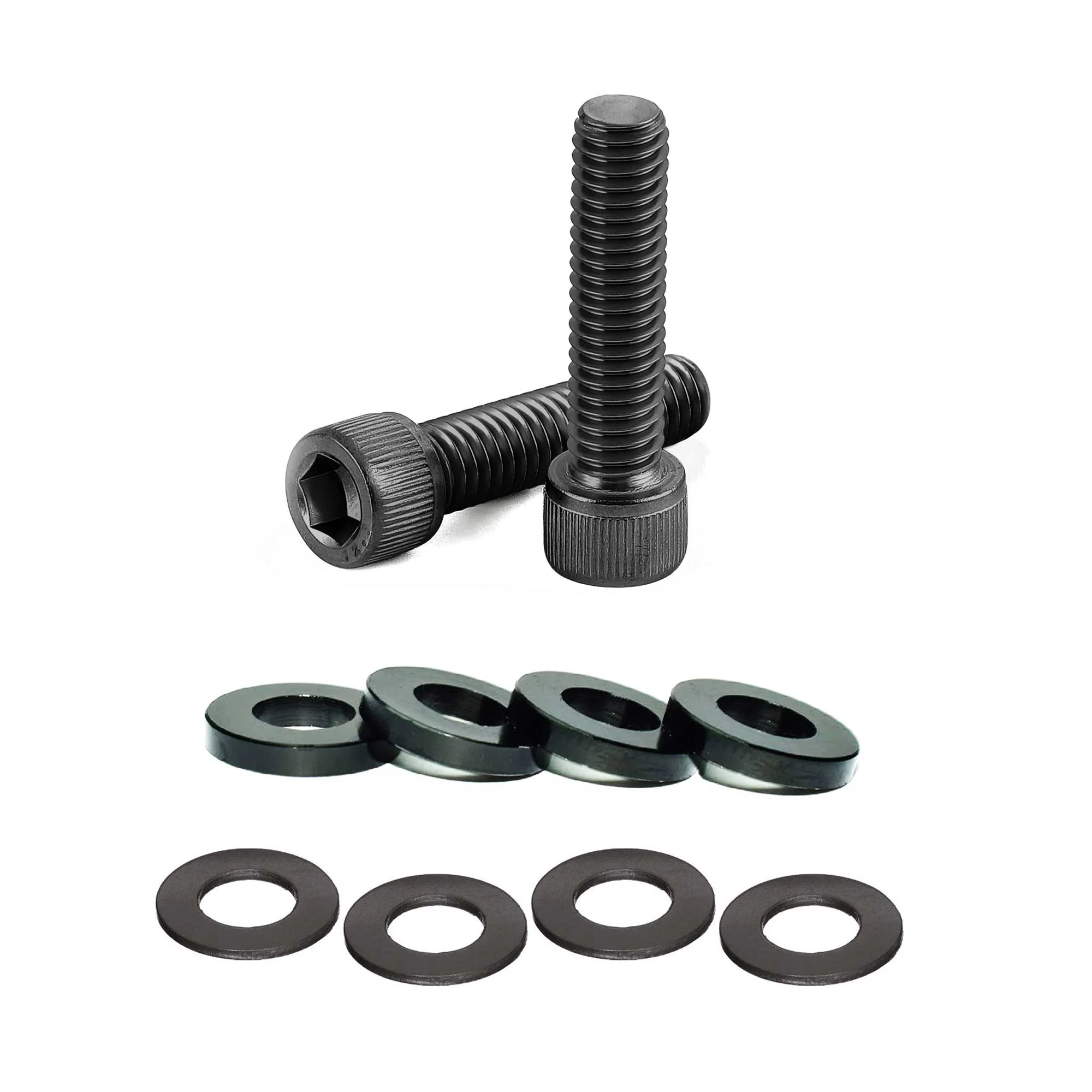

This kit includes (4) M6 x 2mm anodized black aluminum washers, (4) M6 x 1mm carbon steel (stainless) washers and (2) M6 x 25mm allen bolts..

It is almost impossible for us to identify every application where shims and shorter bolts are needed but here is a short list:

Front Forks Requiring Shims:

FOX40s

Talaria Factory Forks 2022.5+

Bomber58s

Fastace

Calipers Requiring Shims:

Magura MT5/7s

EVO TRPs

Hope Tech V4

Hayes Dominion
