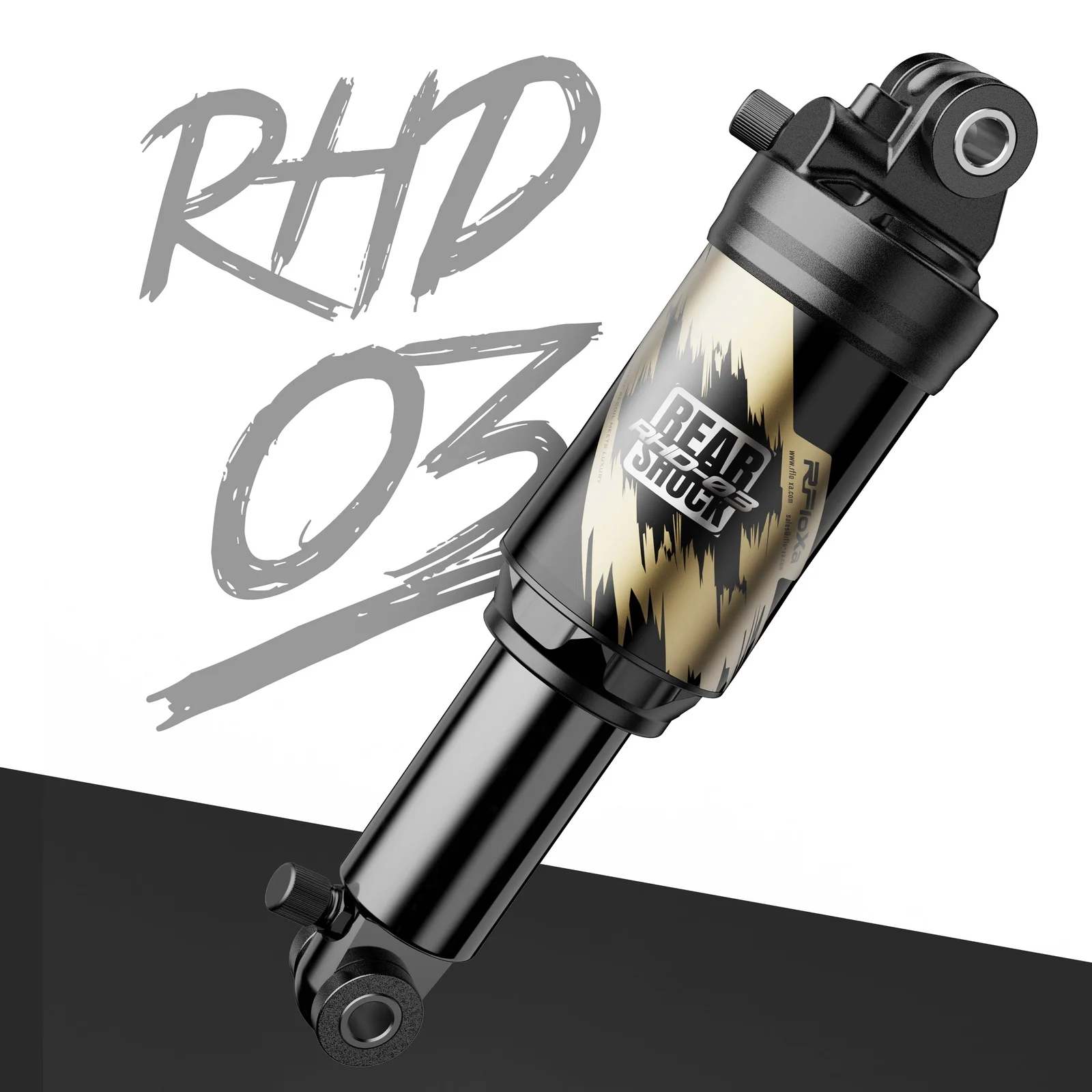

RFLOXA SUSPENSION - RHD03 REAR SHOCK ABSORBER For Revvi 18 - /20 - Bikes

①
Lightweight and Highly Adjustable
– The RHD03 rear shock absorber features an AIR spring structure, which is lighter compared to similar products while providing an exceptional range of adjustability. It includes dual air chambers (MP/NP). Adjust the MP air pressure in the main chamber to set the “spring rate,” and fine-tune the NP air pressure in the secondary chamber to control the rebound speed, accommodating various riding needs.
②
Versatile Application
– Suitable for E-BIKES, soft-tail mountain bikes, and scooters, the RHD02 is designed to handle a wide range of riding conditions. It features AL6061-T6 forged upper mounts and AL6061-T6 forged main tubes, ensuring durability and high performance.
③
Enhanced Stability
– Includes a wear-resistant ring inside to maintain stable support throughout use. This design enhances the shock absorber’s durability and reliability, providing a stable and controlled riding experience.
④
Precision Adjustment
– The RHD03’s air spring structure allows for easy customization of the main and secondary air chamber pressures. Adjusting these pressures helps tailor the shock absorber’s performance to your riding style and road conditions, ensuring optimal comfort and control.
Adjustments
: Main Chamber Pressure (MP Pressure), Secondary Chamber Pressure (NP Pressure)
A variety of sizes, length: 150/165/190 mm. If the specifications of your bike are not listed, please contact us for customization.
Features
:
AIR Air Spring Structure
Dual Air Chambers (MP/NP)
AL6061-T6 Forged Upper Mount
AL6061-T6 Forged Main Tube
Lightweight Design for Enhanced Performance
Adjustable Main and Secondary Air Chamber Pressures for Customization
Wear-resistant Ring for Stable Support
