RFloXa Max Drop Triple Crown for Hawk31 / Hawk32 / PRO Forks

RFLOXA MAX Drop Crown Triple Clamp Kit | Hawk31, Hawk32, PRO & FastAce Forks

Wider Stance, More Clearance, Better Front-End Control

The

RFLOXA MAX Drop Crown Triple Clamp Kit

is built for riders who want more stability, more tire clearance, and more tuning room out of their front-end setup. Designed for RFLOXA Hawk31, Hawk32, PRO forks, and select FastAce fork systems, this CNC-machined clamp kit gives lightweight electric dirt bikes a stronger and more adjustable front end for aggressive trail, moto, and big-wheel builds.

The widened design adds

+16mm over stock clamps

, giving the front end room for tires up to

90mm wide

. That extra space helps with tire clearance, fork compression room, and overall stability when pushing the bike harder off-road. The

17mm drop crown

lets the fork sit lower in the upper crown, helping riders fine-tune cockpit height, steering feel, and geometry, especially when running taller tires or a 21 inch front wheel conversion.

This is a strong upgrade for riders building out a serious Sur-Ron, Talaria, E-Ride Pro, Segway, or similar e-moto. The hollowed crown design helps cut unnecessary weight while keeping strength where it matters, and the dual-row upper clamp bolts with triple-row lower clamp bolts help keep the fork locked in and tracking clean through rough terrain.

Technical Information

Design:

RFLOXA MAX widened drop crown triple clamp kit

Widening:

+16mm over stock clamps

Tire Clearance:

Supports tire widths up to 90mm

Drop Crown:

17mm drop in the upper crown

Material:

CNC-machined high-strength aluminum

Upper Crown:

Dual-row clamp bolt design

Lower Crown:

Triple-row clamp bolt design for increased rigidity

Rotor Spacer:

AL7075 flange spacer for rotor offset correction

Rotor Support:

Compatible with 203mm, 220mm, and 240mm rotor setups when paired with the correct caliper mount

Rotor Mounting:

12-screw staggered system, 6 screws on rotor and 6 screws on spacer

Brake Note:

Not directly compatible with Volar or Rippin Moto brakes without a collet-style adapter

Finish:

Anodized color options designed to match RFLOXA forks

Condition:

Open Box / Like New

Warranty:

30-day functionality warranty

Sales Policy:

All sales final unless the item is not as described or the incorrect item is received

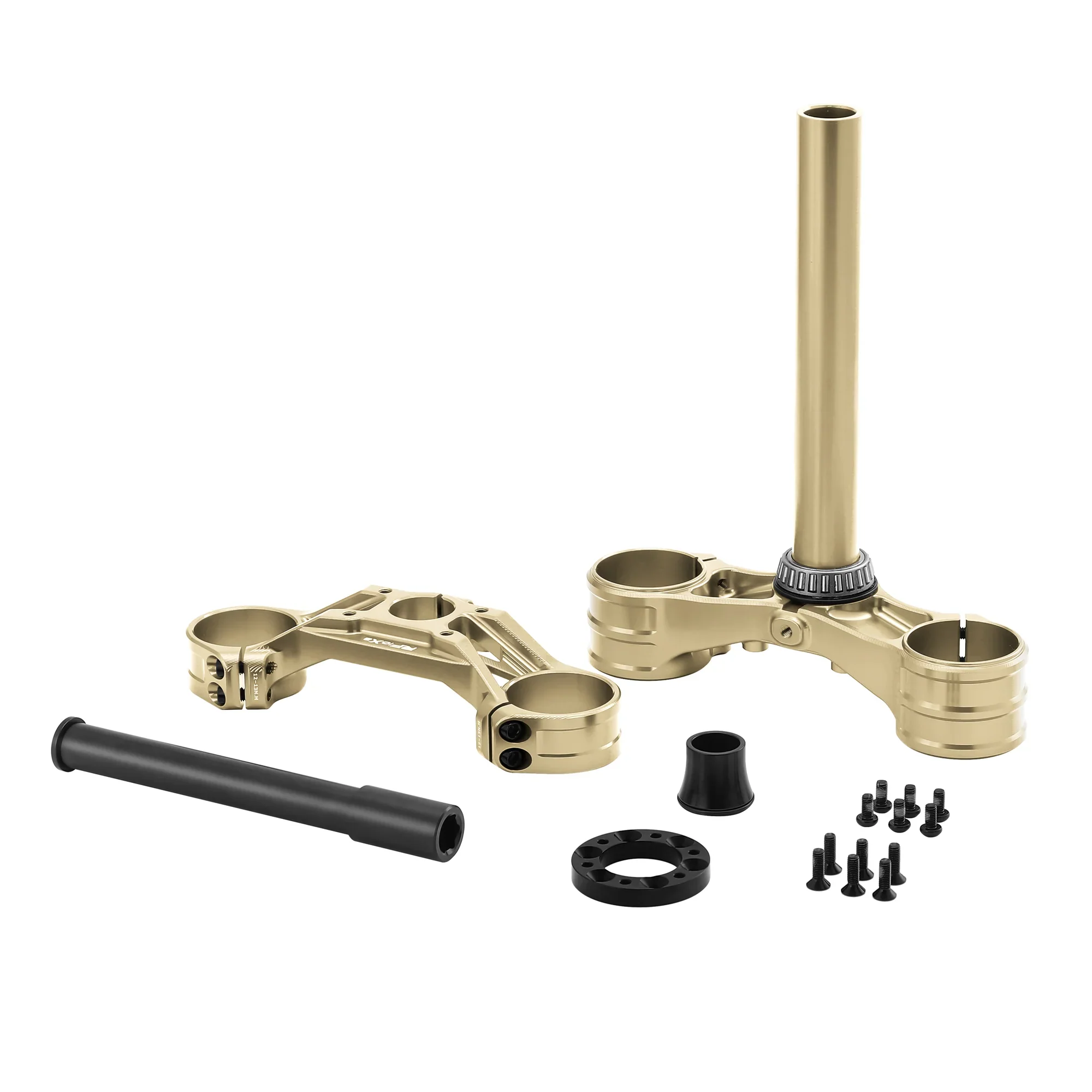

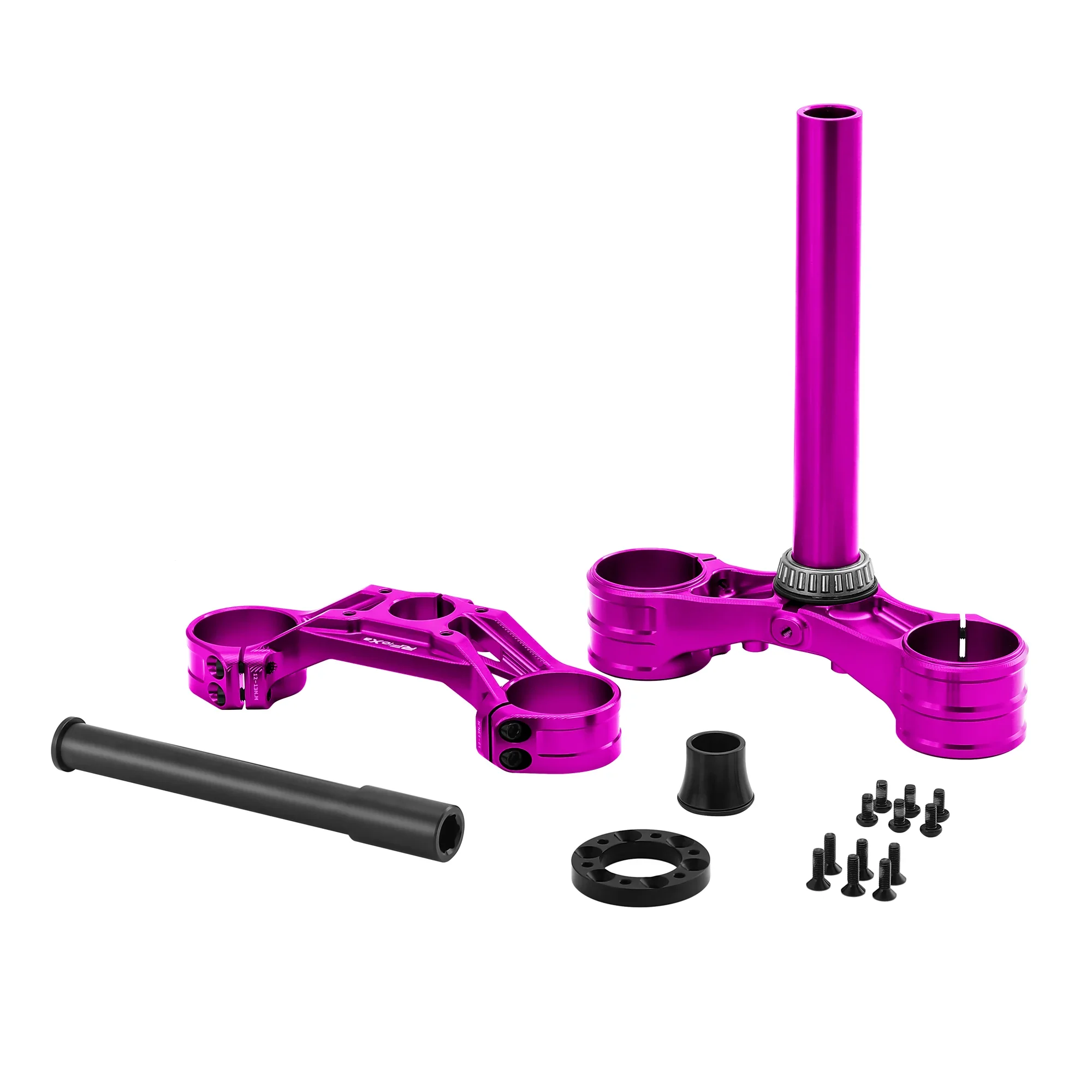

Kit Includes

Upper and lower triple clamp with steering stem, CNC aluminum, 1 set

Widened front wheel axle, AL6061, 1

Left axle sleeve, AL6061, 1

Axle nut, AL6061, 1

Hub washer, AL7075, 1

Countersunk hex screws, 40CR, 6

Umbrella head Phillips screws, 40CR, 6

Press-fit bearing, 1

Color Options

Black

Titanium Gold

Red

Blue

Purple

Fitment

RFLOXA Hawk31 forks

RFLOXA Hawk32 forks

RFLOXA PRO forks

FastAce ALX13RC forks

FastAce AHX12RV forks

Talaria Sting MX3

Talaria Sting MX4

Talaria Sting MX5

Sur-Ron Light Bee X, LBX, LBS, and L1E

E-Ride Pro S, SS, and SR, including 1.0 through 3.0 models

Segway X260

Segway X160

Important Fitment Note

This kit was designed around factory wheel cores. If your bike is using a non-stock front wheel core, aftermarket hub, or custom wheel setup, some spacing, modification, or adapter work may be required. Always confirm your front hub, axle, rotor, and brake setup before installation.

Why This Upgrade Stands Out

The RFLOXA MAX clamp kit is not just a cosmetic upgrade. The wider stance, dropped upper crown, and reinforced clamp structure all work together to give the bike a more planted and tunable front end. Riders running larger tires, 21 inch wheel conversions, longer travel forks, or bigger brake rotors will get the most out of this setup.

The included AL7075 rotor flange spacer is also a big part of the kit. It helps line up the rotor properly for upgraded brake setups and supports 203mm, 220mm, and 240mm rotor configurations when used with the correct caliper mount. That makes this a solid choice for riders building a more serious e-moto front end instead of stacking together mismatched parts.

Best For

Riders upgrading to RFLOXA Hawk31, Hawk32, PRO, or compatible FastAce forks

Big-wheel and 21 inch front wheel conversion builds needing more tire clearance

Aggressive trail, moto, and off-road riders wanting a stiffer, wider, more controlled front end

Disclaimer: Open Box Item / Like New: Guaranteed functional and in stated condition. Covered by a 30-day functionality warranty. All sales final unless item is not as described or incorrect item is received.
