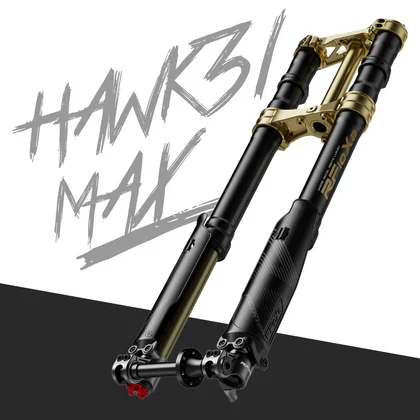

RFloXa Hawk 31 Max Front Fork 228mm Travel for Electric Dirt Bikes

RFloXa Hawk 31 Max Front Fork 228mm Travel | Wide Clamp Suspension for Electric Dirt Bikes

The

RFloXa Hawk 31 Max

is a serious upgrade for riders looking to maximize front-end stability, suspension adjustability, and downhill performance. With

228mm of plush travel

, a

wide 162mm triple clamp

, and a

CNC-machined design

, this fork is purpose-built for

electric dirt bikes and downhill builds

that demand top-tier control and customization.

Whether you’re flying through the woods, hitting jumps, or carving corners, the

Hawk 31 Max

delivers performance that rivals premium motocross forks — without the premium price tag.

🛠 Key Features:

228mm of travel

for aggressive off-road use

37mm stanchion tubes

with 800mm center fork length

162mm clamp center distance

– wider than most stock forks for increased tire clearance and stability

74mm caliper mount spacing

– compatible with 203mm & 220mm disc brakes (adapter required)

AL6061-T6 & AL7075-T6 forged aluminum

body for strength and lightweight performance

Inverted oil-spring damping system

with asymmetrical leg function

Multi-stage damping control

:

High-speed compression

Low-speed compression

Rebound damping

Spring preload

Advanced bottom-out support

via oil pressure system

Dual-valve internal damping for stable, responsive feedback

Available in

black

or

gold

triple clamp finishes

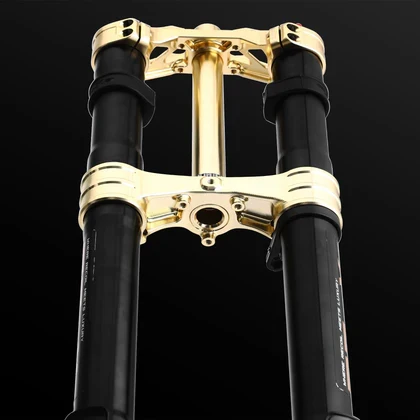

🔧 MAX Widened Triple Clamp Kit Includes:

Upper and lower CNC triple clamps

Matching steering stem

Raised flange

Widened front axle & bushings

All mounting hardware included

Available in Black, Red, Blue, Purple, Gun Gold

⚖️ Spring Rates:

45 lb spring

– Ideal for riders ≤ 220 lbs (≤ 100kg)

55 lb spring

– Ideal for riders 220–285 lbs (100–130kg)

✅ Fitment Compatibility:

Surron LBX / LBS / L1E

Talaria Sting MX3 / MX4 / XXX

Segway X160 / X260

E-Ride Pro S / SS 2.0 / SS 3.0 / SR

79-Bike Falcon M

Rerode R1

Altis Sigma

RAWRR Mantis X / Standard

Supports both 19” and 21” front wheel configurations with increased clearance from the widened clamp spacing.

⚠️ Important Notes:

Currently not plug-and-play with larger brake calipers

found on:

Altis Sigma

SRPNT Moto

E-Ride Pro SS 3.0

E-Ride Pro SR

These bikes require a brake adapter that is

not yet available

– but it’s

in development now

! If you’re running

Volar Sport Racing calipers

, REV Rides can

special order a front adapter

for you. Just reach out and we’ll get you squared away.

💡 Why Choose the Hawk 31 Max?

More tire clearance & stability

thanks to the 16mm-wider clamp spacing

More tuning options

with multi-stage damping and spring preload control

More strength

with forged AL6061 & AL7075 construction

More bottom-out protection

for big landings and technical terrain

More confidence

in every ride

Open Box Item/Like New Return Policy: Guaranteed functional and in stated condition. Covered by a 30-day functionality warranty. All sales final unless item is not as described or incorrect item is received.
