Pro Suspension Upgrade Bundle | By Formula & EXT | For E-Moto Platforms

Pro Suspension Upgrade Bundle | By Formula & EXT | For E-Moto Platforms

This suspension bundle is built for riders who are ready to move past stock limitations and into real performance. We paired the

Formula TECH E39 E-Moto Fork

with the

EXT Arma MX V3 Rear Shock

to create a balanced, high-end front and rear suspension setup designed specifically for modern lightweight electric dirt bikes.

If you are riding harder, jumping bigger, or pushing your bike into terrain where control actually matters, this is the setup that transforms how your bike feels from front to rear.

What’s Included in This Bundle

Formula TECH E39 E-Moto Fork | 230mm Travel

The

TECH E39 Fork by Formula

is a purpose-built e-moto fork developed and assembled in Tuscany, Italy. It combines motocross-level chassis strength with tuning specifically designed for electric dirt bikes, giving you confidence on jumps, compliance in chop, and control on technical descents.

230 mm of travel for aggressive off-road riding and hard landings

39 mm hard-chromed alloy stanchions for strength and smooth action

CNC-machined triple clamp with included drop crown

Fully adjustable hydraulics with 32-click rebound and 22-click compression

Low-friction bushings and heavy-duty seals for long service life

Anodized aluminum outer tubes with forged lower feet

Compatible with MTB brakes and Volar Sport Racing Brakes

Dedicated axle and bushings for true plug-and-play hub fitment

Fully rebuildable and customizable as your riding progresses

Weight: 6.8 kg complete with axle, crown, and hardware

Brake mount: 220 mm standard radial mount

Spring Rate Tuning Options

Every TECH E39 fork ships with a

Medium spring pre-installed

. Riders can fine-tune their setup using optional coil springs depending on terrain and riding style.

Soft Spring (EX-S):

Improved small-bump compliance and comfort for technical terrain

Hard Spring (EX-H):

Firmer support for heavier riders, big jumps, or MX-style riding

Springs are sold separately. Installation is quick and tuning changes are immediately noticeable.

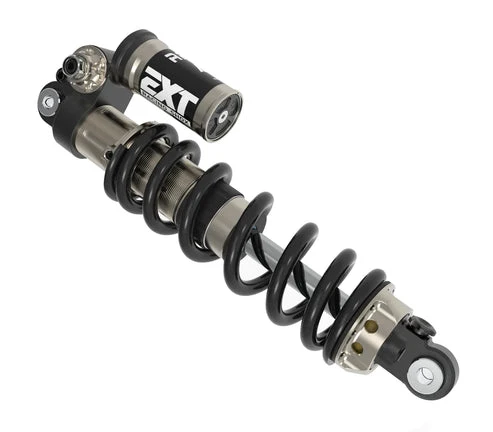

EXT Arma MX V3 Rear Shock (E-MX Damper)

The

EXT Arma MX V3

is a direct bolt-on, high-performance rear shock engineered to handle the torque, weight, and riding demands of modern e-motos. Each shock is built and pre-tuned by EXT-USA based on rider and bike information you provide, so it arrives ready to ride.

4-way adjustable damping: LSC, HSC, LSR, and HBC

Enhanced Hydraulic Bottom-Out Control with expanded adjustment range

High-flow 29 mm main piston with 24 mm valve piston

14 mm shaft, 50 percent larger than most coil shocks for durability

Engineered rebound circuit separating bump and rebound oil flow

Ultra low-friction coating and low-friction seals

Very low reservoir pressure at 55 PSI for maximum sensitivity

Low hysteresis for fast response and consistent damping

Progressive mid-stroke support with excellent end-stroke control

Low-profile rebound knob for easier spring changes

Each shock includes one lightweight spring and all required mounting hardware for true bolt-in installation. No additional parts required.

Rear Shock Spring Guide

Up to 140 lbs: 400 lb spring

140–180 lbs: 450 lb spring

180–210 lbs: 500 lb spring

210–240 lbs: 550 lb spring

240 lbs and up: 600 lb spring

This guide is a baseline. Always factor in riding gear and personal preference. Firmer or softer setups can be achieved by selecting a spring above or below the recommended range.

Important Fitment & Brake Notes

The TECH E39 fork is not yet plug-and-play with larger calipers found on certain platforms, including Altis Sigma, SRPNT Moto, E Ride Pro SS 3.0, and E Ride Pro SR. Brake adapters for these setups are currently in development.

For riders running Volar Sport Racing Brakes, dedicated adapters will be offered by REV Rides. Contact our team for special orders or fitment guidance.

Headset bearings are not included.

We highly recommend adding a headset bearing kit so your installation goes smoothly from day one.

Fitment

Sur-Ron Light Bee X, LBX, Ultra

Talaria Sting MX3, MX4, XXX

E Ride Pro S, SS 2.0, SS 3.0, SR

Altis Sigma and Altis Sigma MX

RAWRR Mantis X

Arctic Leopard XE Pro and XE Pro S

Ventus One

RFN Apollo, 79Bike, E-Boost

Why This Bundle Makes Sense

Suspension works best when the front and rear are balanced. This bundle gives you a true performance match, motocross-grade front control paired with a rider-specific rear shock that can handle real abuse. Whether you are chasing lap times, building a hard-charging trail bike, or dialing in jump performance, this setup delivers confidence without compromise.

If you are serious about how your e-moto rides, this is one of the biggest upgrades you can make.
