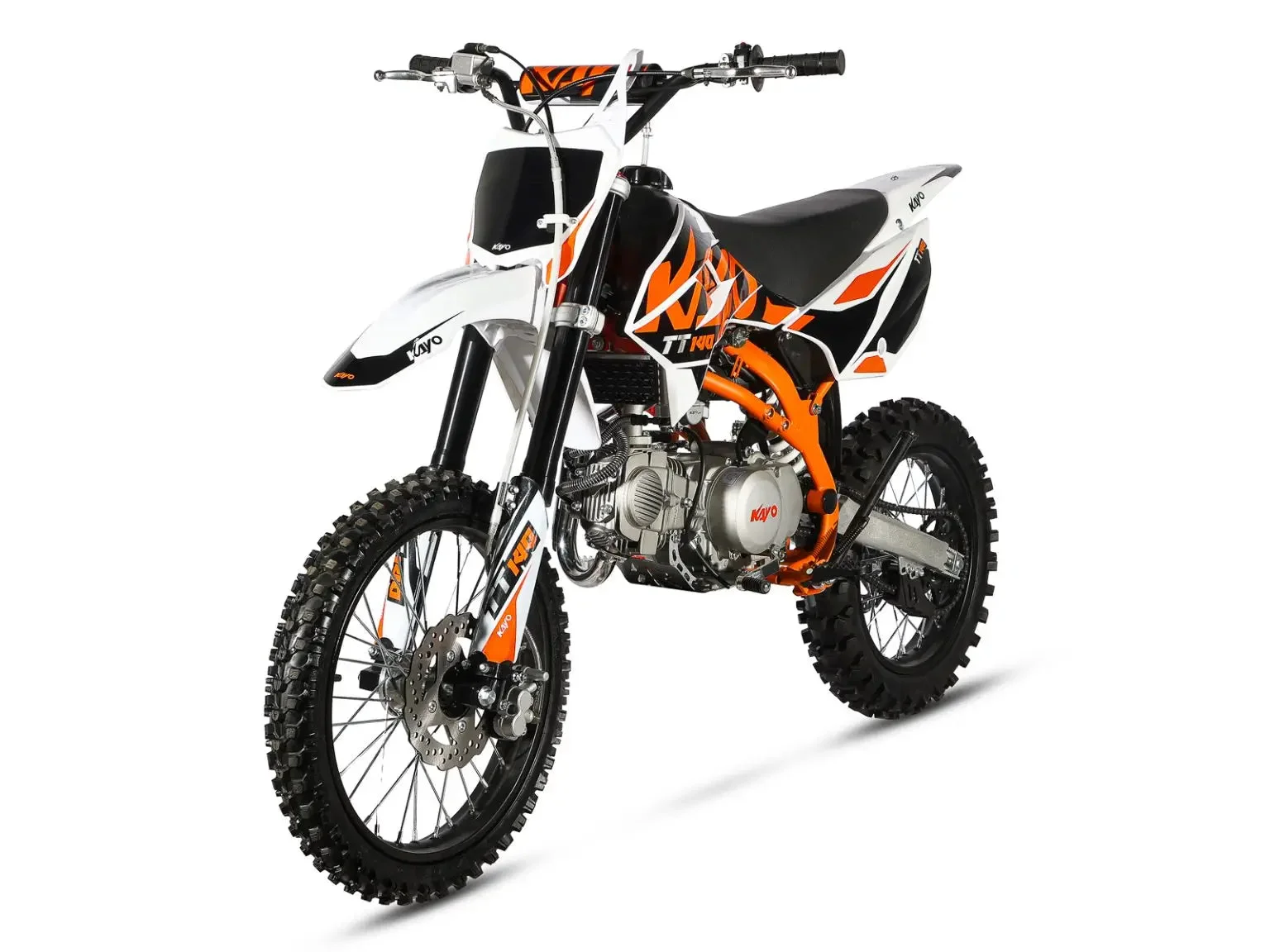

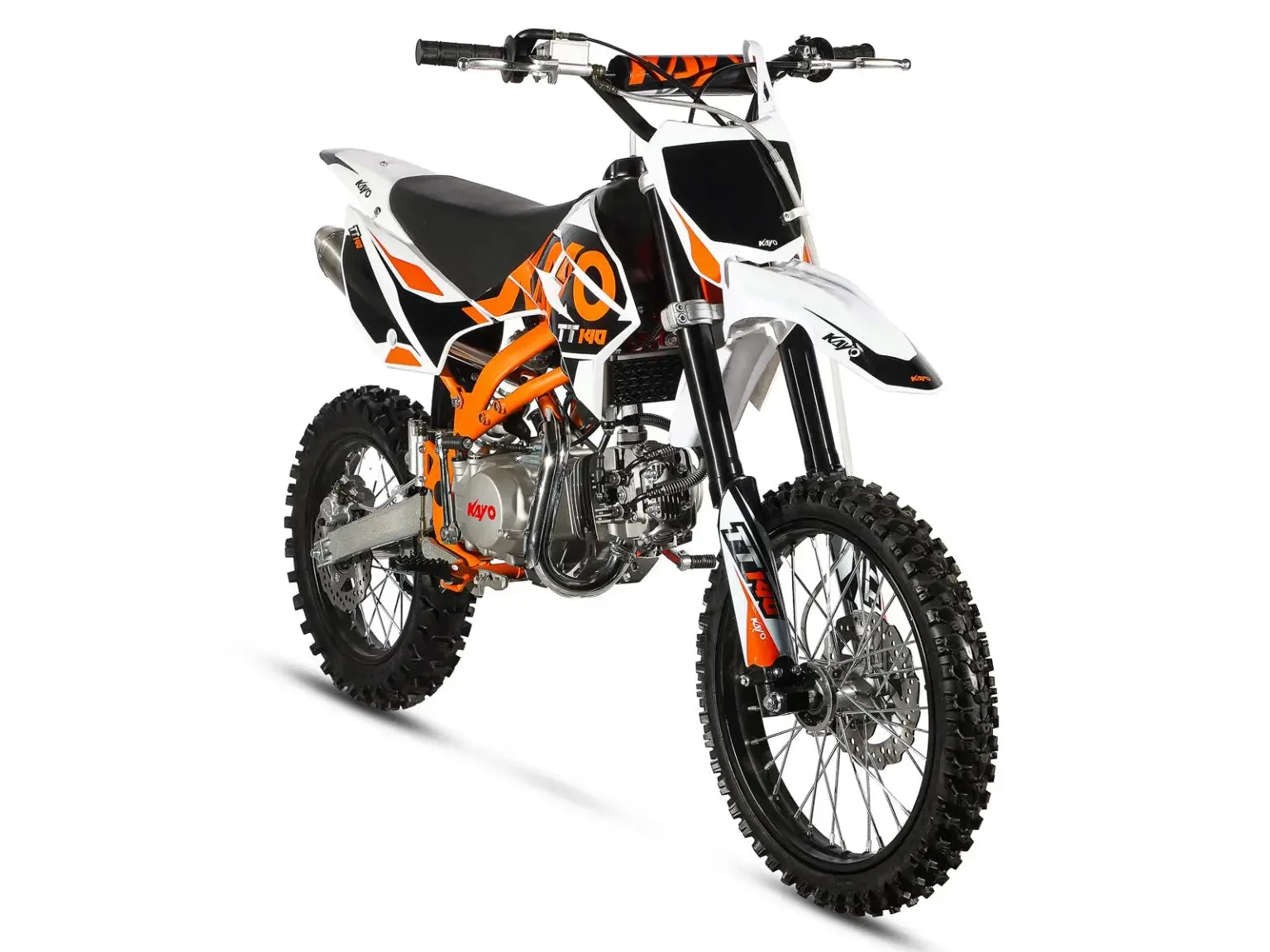

KAYO TT140 PITBIKE
The legendary YX140 cc (the engine that defined a generation) forms the basis of this insanely well-considered pit bike which is most definitely not just for kids.
Performance Highlights
Product Overview
The legendary YX140 cc (the engine that defined a generation) forms the basis of this insanely well-considered pit bike which is most definitely not just for kids.
Kayo is hands down the largest manufacturer of pit bikes in the world today, dwarfing Honda with massive volume and the hi-tech robot welding lines to match the demand of their bikes.
The TT140 takes advantage of the gigantic leaps Kayo has taken in the industry over the past 20 years.
Precision welding, the best available components suppliers, insane attention to detail and robustness to match the Japanese manufacturers.
SPECIFICATION
Distro
Stomp Distribution Ltd
Manufacturer
KAYO
Model
TT140
Warranty
30 days parts only warranty
ENGINE
Bore x Stroke
56.0 x 57.0mm
Compression Ratio
9.8:1
Displacement
140.0cc
Engine
4-Stroke, SOHC, Air Cooled
Fuel System
Carburetor
Ignition
CDI
Maximum Power
8.2 kw @ 8000rpm
Maximum Torque
10.2 N⋅m @ 7500rpm
Start
Kick Start
Transmission
Manual Four Speed with N-1-2-3-4
CHASSIS
Brakes
Front – Hydraulic Brake / Rear – Hydraulic Brake
Final Drive
Chain
Front Suspension
735mm Non-Adjustable
Rear Suspension
360mm Non-Adjustable
Front Tyres
17″
Rear Tyres
14″
DIMS & CAPACITY
Length
1780mm
Width
750mm
Height
1120mm
Dry Weight
73.0kg
Fuel Capacity
5.5 litres
Ground Clearance
290mm
Seat Height
855mm
Wheelbase
1220mm
Technical Specifications
| Brand | Surron |
|---|---|
| SKU Identifier | SR-KAYO-TT140-0148 |
| Motor Architecture | 8.2 Kw @ 8000Rpm |
| Warranty Term | 2 Years Limited Warranty |
